Lite Gateway IEC 61850 to IEC 60870-5-104 at DistribuTECH in San Diego

NettedAutomation will demonstrate the following lite Gateway between IEC 61850 (process level with various I/Os) and IEC 60870-5-104 (RTU) at the DistribuTECH next week (29.-31. January 2013) in San Diego (booth 1648):


The components (HW and SW) can be used to build many useful topologies:

  • Gateway IEC 61850 (client) to IEC 60870-5-104 (slave) – as shown in the picture
  • Gateway IEC 60870-5-104 (master) to IEC 61850 (server)
  • Gateway many serial links to IEC 60870-5-104 (slave)
  • The two software packages from SystemCorp running on these platforms (IEC 61850 stack/API and IEC 60870-5-104 stack/API) can be used in any combination and with many communication channels (Ethernet, GSM GPRS, WiFi, Bluetooth, …).
  • The IEC 61850 server could – of course – be accessed directly by a remote client.
  • Other protocols are available.

The box in the middle is a Com.Tom Radio 2.0 and the right box is a development kit DK61.

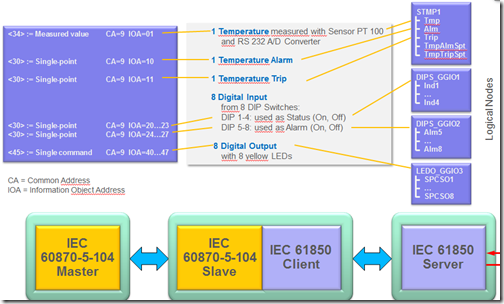

The following signals (data model) will be demonstrated:


I look forward to meeting you at the DistribuTECH in San Diego (CA) next week.

If you need help in using these lite components, please let us know.
