Friday, February 14, 2014

Siemens reported using IEC 60870-5-104 for DEMS

Siemens DEMS 3.0 stands for third version of their “Decentralized Energy Management System”. It uses IEC 60870-5-104 for communication with power generators, storage devices or loads. The use of open communication and other solutions built-in reduce the engineering cost for virtual power plants by 60 percent – according to Siemens.

What could you do to apply the same cost reduction – or more – if you have to integrate IEDs that provide IEC 61850 information, information exchange and configuration language? Or how to connect a DEMS 3.0 system to IEC 61850?

Here is – I guess – the easiest and shortest time-to-market solution … without writing a single line of program code: The gateway using a so-called com.tom (communication to machine). The topology of an example is shown in the following figure. The gateway is implemented in the upper box.

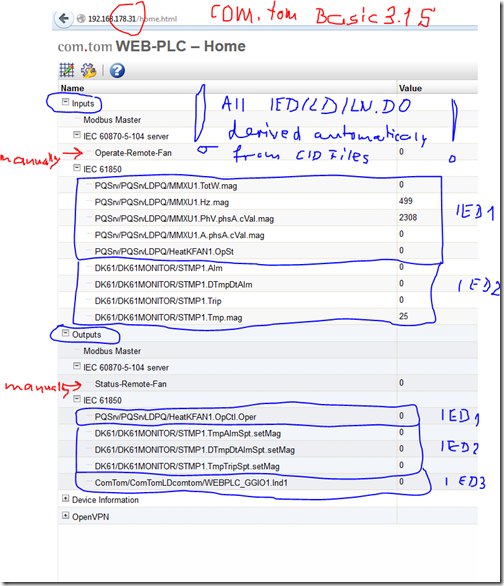

All WEB PLC objects (inputs and outputs) related to IEC 61850 models are automatically generated from the corresponding SCL files. There is no need to do any manual configuration as long as you have the ICD files of the devices. The object names of the WEB PLC are derived from the object references of the IED/LD/LN.DO.DOA and so on. You see the path names in the I/O list.


All WEB PLC objects can be used to build applications like linking any input with any output (applying the same type – of course): single point input to single point output. The following diagram shows a simple gateway functionality to receive a command via IEC 60870-5-104, route it through an IEC 61850 client to an underlying IEC 61850 server that switches a fan on or off. The status of the FAN LN (using an extended Data Object OpSt) reports the status of the fan. This status is received from the underlying IED via an IEC 61850 report and routed to an IEC 61850 server and an IEC 60870-5-104 server in the gateway.


After “drawing” this diagram, all you need to do is to store the diagram to the gateway (com.tom Basic 3.1 S) and start the program. That’s it.

You may also have figured out the the com.tom Basic 3.1 S integrates an 5-port Ethernet Switch and another independent Ethernet port. This allows to build secure proxy servers/gateways.

The WEB PLC with IEC 60870-5-104, DNP3, Modbus, IEC 61850, … is a very easy, low cost and fast-to-market product that can be applied for many applications running on these communication solutions and for gateways. The application is freely configurable by drawing lines.

If you need complex functions, you can write them in C/C++ or IEC 61131-3 (CoDeSys) and wrap them for immediate use at the WEB PLC. For more complex applications you can program the application in C/C++ or CoDeSys and use the same communication.

Whatever protocol standard is used for a system (IEC 60870-5-104 for Siemens DEMS 3.0) you can easily integrate other devices that run DNP3, Modbus, IEC 61850, … with the com.tom WEB PLC gateway.

You want to learn more about the gateway, please contact us.

Click HERE for information about the com.tom family. The com.tom Basic 3.1, for example, costs 368 Euro plus some license costs for IEC 60870-5-104 and IEC 61850 – this includes already the 5-port Ethernet Switch!
